File:Ramachandran plot general 100K.jpg
From Proteopedia
Jump to navigationJump to search
Size of this preview: 671 × 599 pixels. Other resolution: 750 × 670 pixels.
Original file (750 × 670 pixels, file size: 225 KB, MIME type: image/jpeg)
Proteopedia Page Contributors and Editors (what is this?)
Summary

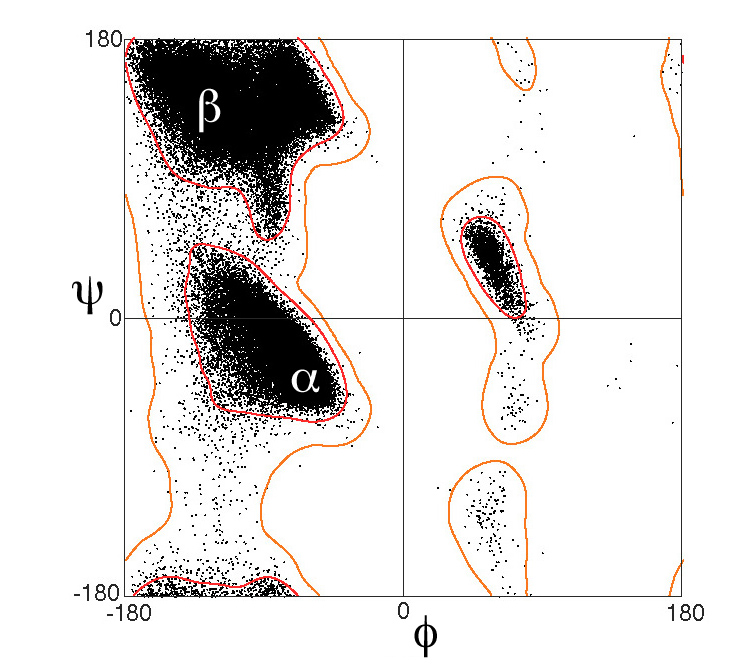

A general-case Ramachandran plot determined from 100,000 residues of high-quality crystallographic data (resolution ≥1.8A, backbone B-factor ≤30). Inner contour encloses the energetically favored 98% of that data, and outer contour encloses the allowed 99.95% of that data; points beyond that are considered outliers. Regions of α-helix and β-sheet are labeled. From the Richardson lab Top500 proteins [1].
Licensing
Creative Commons Attribution 3.0 License
- ↑ Lovell SC, Davis IW, Arendall WB 3rd, de Bakker PI, Word JM, Prisant MG, Richardson JS, Richardson DC. Structure validation by Calpha geometry: phi,psi and Cbeta deviation. Proteins. 2003 Feb 15;50(3):437-50. PMID:12557186 doi:10.1002/prot.10286
